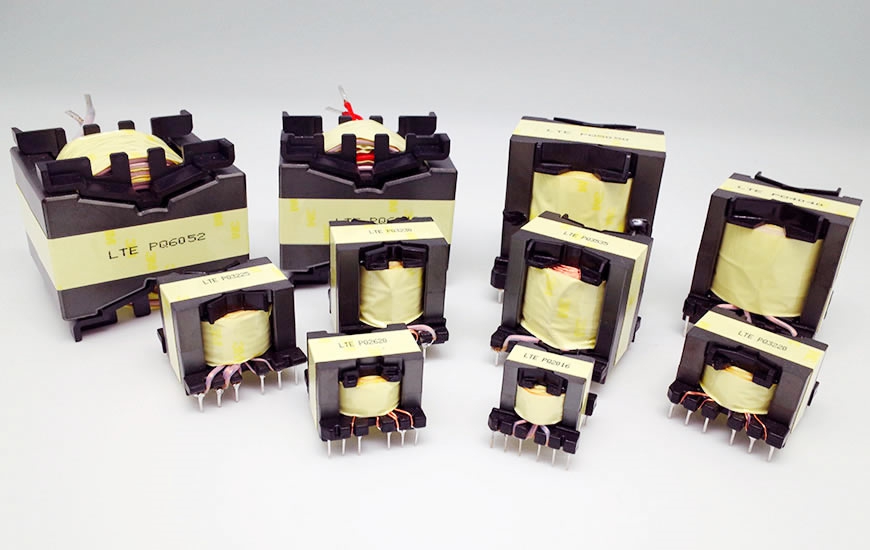

PQ TYPE POWER TRANSFORMER

we can now provide from PQ-16 to PQ-65 to meet different customer and industry requirements.

EE transformers have a good magnetic, low consume, get high function frequency, and high counteract for the obstruction. High power Frequency (20 ~ 500KHz). High Power Output (1000W). Good heat balance. Customized specifications are welcome.

Features

• Flyback transformer.
• Drive transformer.
• Control transformer.
• High current inductors.

Specification

• Size of PQ Core can chose.

Regular range of PQ transformer Suitable for normal operation and use condition
PQ20/16｜PQ20/20｜PQ26/25｜PQ232/20｜PQ32/30｜PQ35/35｜PQ40/40｜PQ50/50

Large Size of PQ transformer for High Power application
With increase demand in switching power supply and EV/HV/OBC Charge system, we now have special type of PQ Transformer to meet such kind of demand.
Here are some common Type of large size PQ Transformer
PQ60/42｜PQ62/52｜PQ65/44｜PQ65/54
