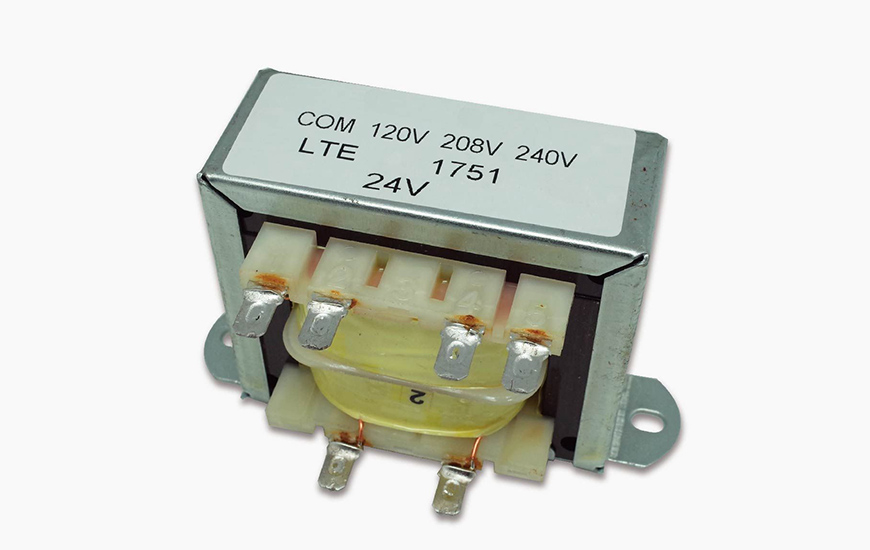

    LAMINATION TRANSFORMER EI TYPE

    EI Type Power Transformer, linear transformer is a traditional transformer with simple and reliable structure. This type of transformer is widely used in different application like Security system power supply, test equipment, industrial machine, Audio/Video amplifier, AC/DC Power Supply, Lighting products

    Advantages of EI Type Power transformer

    • Reasonable cost
    • Easy to install and integrate into system
    • Easy to modify to achieve custom requirement


    Range of LTE EI Type of Power Transformer
    We offer a wide range of power transformer from output of 10VA ~ 1200VA
    Size of transformer from EI48 ~ EI 133, customer special design and requirement is also welcome.
    Here is a reference size and power rating of our EI range products.

    Specification

    Model No. Power Rating EI TYPE Ref Core Size Dimension
    L W H
    LT-EIT-0010A  10VA EI48 48-18 50 34 44
    LT-EIT-0012A 12VA EI48 48-20 50 36 44
    LT-EIT-0015A 15VA EI48 48-24 50 40 44
    LT-EIT-0020A 20VA EI48 48-30 50 46 44
    LT-EIT-0025A 25VA EI57 57-20 59.5 44 50.5
    LT-EIT-0030A 30VA EI57 57-30 59.5 48.5 50.5
    LT-EIT-0035A 35VA EI57 57-30   59.5 54 50.5
    LT-EIT-0040A 40VA EI57 57-35   59.5 59 50.5
    LT-EIT-0045A 45VA EI66 66-24   68.5 52 58.5
    LT-EIT-0055A 55VA EI66 66-36   68.5 58 58.5
    LT-EIT-0060A 60VA EI66 66-36 68.5 64 58.5
    LT-EIT-0065A 65VA EI66 66-40  69.5 58.5 68
    LT-EIT-0070A 70VA EI66 66-45   68.5 58.5 71
    LT-EIT-0080A 80VA EI76 76-32   78.5 62 68.5
    LT-EIT-0100A 100VA EI76 76-38   78.5 68 68.5
    LT-EIT-0120A 120VA EI76 76-45   78.5 75 68.5
    LT-EIT-0135A 135VA EI76 76-50   78.5 80 68.5
    LT-EIT-0140A 140VA EI86 86-38   86.2 72 72
    LT-EIT-0145A 145VA EI86 86-42  86.2 76 72
    LT-EIT-0155A 155VA EI86 86-45   86.2 79 72
    LT-EIT-0155B 155VA EI96 96-32   96 69 80.5
    LT-EIT-0170A 170VA EI86 86-50   86.2 79 72
    LT-EIT-0180A 180VA EI96 96-38   96 75 80.5
    LT-EIT-0210A 210VA EI96 96-45   96 82 80.5
    LT-EIT-0230A 230VA EI96 96-50   96 87 80.5
    LT-EIT-0230B 230VA EI105 105-34   105 73 91
    LT-EIT-0265A 265VA EI96 96-60 96 97  80.5
    LT-EIT-0270A 270VA EI105 105-40 105 73 91
    LT-EIT-0340A 340VA EI105 105-50 105 89 91
    LT-EIT-0370A 370VA EI105 105-55 105 94 91
    LT-EIT-0400A 400VA EI114 114-45 114 89 97.5
    LT-EIT-0430A 430VA EI114 114-50 114 94 97.5
    LT-EIT-0480A 480VA EI114 114-55 114 99  97.5
    LT-EIT-0520A 520VA EI114 114-60 114 104 97.5
    LT-EIT-0560A 560VA EI114 114-65 114 109 97.5
    LT-EIT-0670A 670VA EI133 133-50 136 115 114
    LT-EIT-0730A 730VA EI133 133-55 136 128 114
    LT-EIT-0800A 800VA EI133 133-60 136 125 144
    LT-EIT-0870A 870VA EI133 133-65 136 129 144
    LT-EIT-0930A 930VA EI133 133-70 136 135 144
    LT-EIT-1000A 1000VA EI133 133-75 136 141 144
    LT-EIT-1070A 1080VA EI133 133-80 136 144 144
    LT-EIT-1200A 1200VA EI133 133-90 136 154 144
