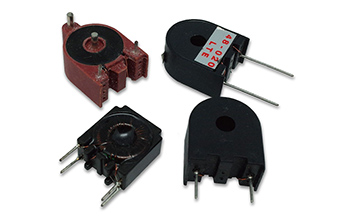

CURRENT SENSE INDUCTORS

Current sense transformers are used to measure the current in the electronic system. We provide the standard type with calculated winding ratio. Customer's designs are welcome.

Specification

• LTE-99001 1:100Ts
• LTE-99002 1: 200Ts
• LTE-99003
• LTE-99004
• 1:1000Ts

Specification for Custom Design

1. Core Type:
   (1) Ferrite Rod Core: OD 2.5 ~ 6mm, Length 9 ~ 20mm, 300 ~ 1800ui ± 25%
   (2) Ferrite Drum Core (Bobbin Core): OD 3 ~ 18mm, Height 4 ~ 18mm, 250 ~ 1800ui ±25%
2. Leads in axial or radial.
3. Inductance: to be customized.
4. Current: to be customized.
